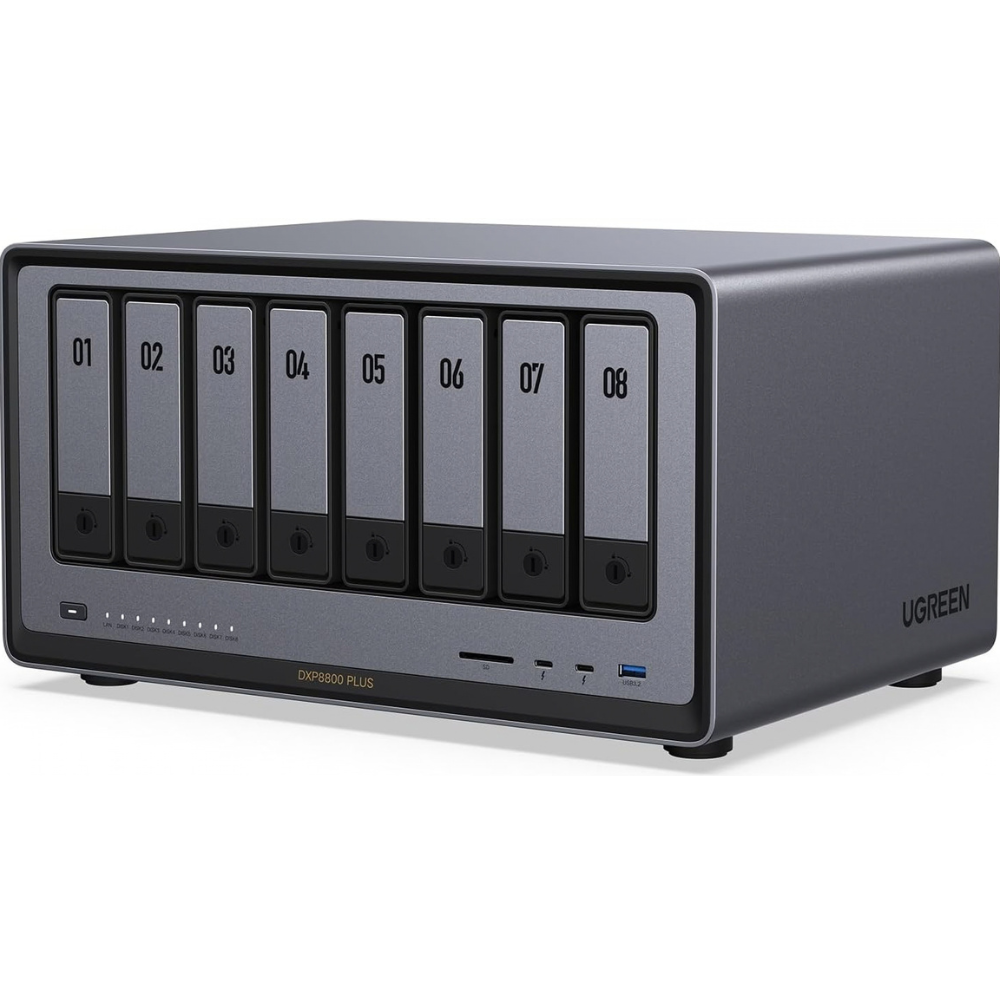

UGREEN NASync DXP8800 Plus 8-Bay Desktop NAS – Intel Core i5-1235U, 8GB DDR5, 128GB SSD, Dual 10GbE, Thunderbolt 4, Diskless

Description

The UGREEN NASync DXP8800 Plus is a high-performance 8-bay desktop NAS designed for demanding home, business and professional storage environments. Powered by a 12th Gen Intel Core i5-1235U processor with 10 cores and 12 threads, it combines 8GB DDR5 memory, a dedicated 128GB SSD for the system, eight SATA drive bays and two M.2 NVMe slots. Dual 10GbE networking, Thunderbolt 4 and 8K HDMI provide high-speed connectivity for large file transfers, media workflows, backups and collaboration. Hard drives are not included in this diskless configuration.

Key Features of UGREEN NASync DXP8800 Plus

• 12th Gen Intel Core i5-1235U with 10 cores and 12 threads
• 8GB DDR5 RAM, expandable up to 64GB
• Built-in 128GB SSD dedicated to the system
• 8 SATA drive bays for large-capacity storage
• 2 × M.2 NVMe SSD slots for fast storage/cache expansion
• Dual 10GbE RJ45 ports for high-speed network connectivity
• Supports link aggregation for up to 20Gb bandwidth
• 2 × Thunderbolt 4 ports with up to 40Gbps bandwidth
• 8K HDMI output
• Supports JBOD, Basic, RAID 0, 1, 5, 6 and 10
• PCIe Gen4 x4 expansion slot
• SD 4.0 card reader
• Runs UGOS Pro
• Diskless design lets you select your preferred compatible storage drives
• Supports third-party drives from brands including Western Digital, Seagate and Toshiba.

Specifications

• Brand: UGREEN
• Model: NASync DXP8800 Plus
• SKU: 35126 / 35127, depending on regional configuration
• Form Factor: 8-Bay Desktop NAS
• Processor: Intel Core i5-1235U, 12th Gen, 10 cores, 12 threads
• RAM: 8GB DDR5
• System Storage: 128GB SSD
• M.2 Slots: 2 × M.2 NVMe
• RAID: JBOD, Basic, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Maximum Storage: Up to 272TB, depending on supported drive configuration
• Network: 2 × 10GbE RJ45
• Thunderbolt: 2 × Thunderbolt 4, up to 40Gbps
• PCIe: 1 × PCIe Gen4 x4
• HDMI: 8K output
• USB: USB-A high-speed and USB 2.0 ports
• Card Reader: SD 4.0
• Operating System: UGOS Pro
• Wireless: No built-in Wi-Fi
• Configuration: Diskless — hard drives not included
• Dimensions: Approximately 360 × 258 × 189–200 mm
• Colour: Grey

Ideal Uses of UGREEN NASync DXP8800 Plus

• Business file storage and sharing
• Centralized backups
• High-speed media storage
• Video editing and professional workflows
• Photo and video libraries
• Virtualization and application hosting
• Surveillance storage
• Team collaboration
• Private cloud storage
• Large-scale home media servers

Summary

The UGREEN NASync DXP8800 Plus combines desktop-class processing with high-speed networking and extensive storage expansion. Its eight SATA bays, dual M.2 NVMe slots, dual 10GbE ports and Thunderbolt 4 connectivity make it suitable for businesses, creators and power users who need fast, expandable and centralized data storage. The diskless configuration allows storage capacity to be customized according to your requirements.
