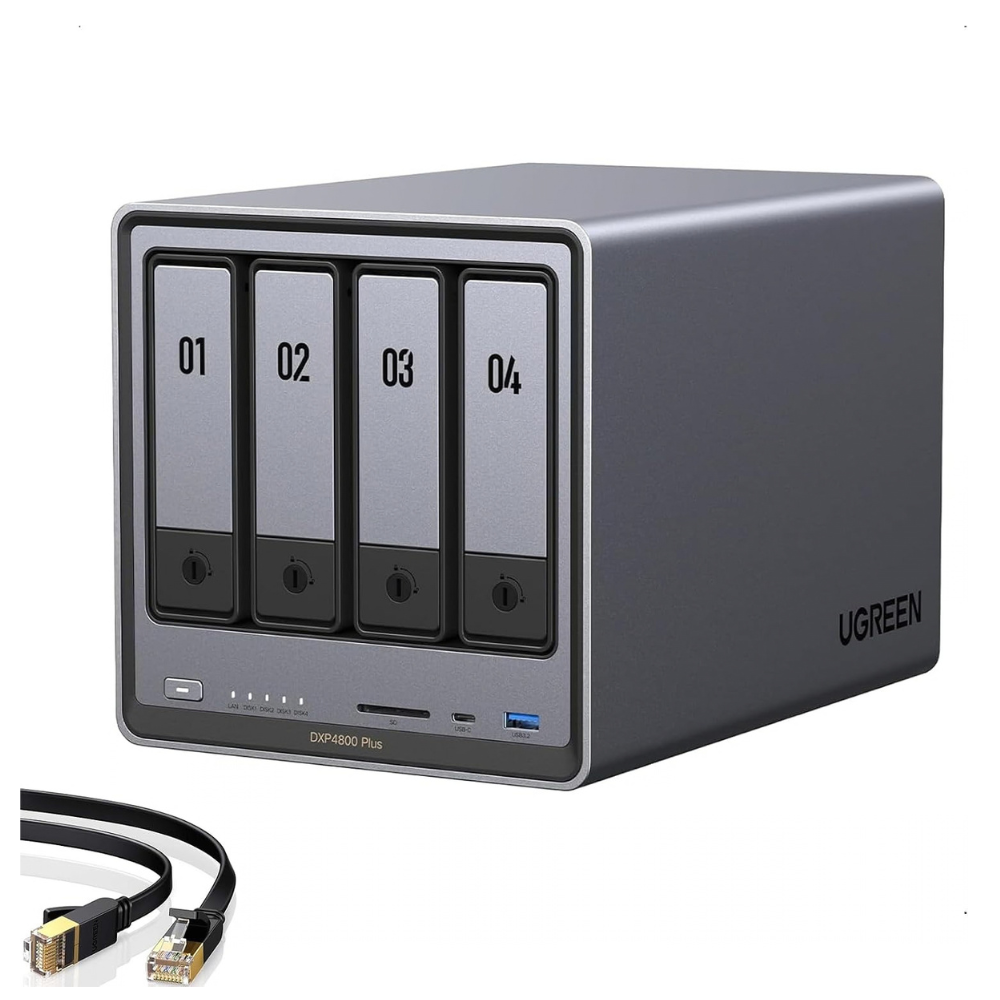

UGREEN NASync DXP4800 Plus 4-Bay Desktop NAS – Intel Pentium Gold 8505, 8GB DDR5, 128GB SSD, 10GbE + 2.5GbE, 2× NVMe, 4K HDMI

Description

The UGREEN NASync DXP4800 Plus is a high-performance 4-bay desktop NAS designed for centralized storage, private cloud access, backups, media management and demanding file-sharing workloads. Powered by a 12th Gen Intel Pentium Gold 8505 processor with 5 cores and 6 threads, it includes 8GB DDR5 RAM, a 128GB SSD for the UGOS Pro operating system, four SATA drive bays and two M.2 NVMe slots. Its combination of 10GbE and 2.5GbE networking provides fast connectivity for large file transfers and multi-user environments.

Key Features of UGREEN NASync DXP4800 Plus

• 12th Gen Intel Pentium Gold 8505 processor
• 5 cores / 6 threads, up to 4.40GHz
• 8GB DDR5 RAM, expandable up to 64GB
• Built-in 128GB SSD for UGOS Pro
• 4 × SATA drive bays supporting 3.5-inch HDDs and 2.5-inch drives
• 2 × M.2 NVMe SSD slots for fast storage or caching
• 1 × 10GbE + 1 × 2.5GbE RJ45 networking
• 4K HDMI output
• UGOS Pro NAS operating system
• Supports JBOD, Basic, RAID 0, 1, 5, 6 and 10
• USB-C and USB-A high-speed connectivity
• Dual rear USB 2.0 ports
• Supports third-party storage drives from major manufacturers such as Western Digital, Seagate and Toshiba

Specifications

• Brand: UGREEN
• Model: NASync DXP4800 Plus
• Form Factor: 4-Bay Desktop NAS
• Processor: Intel Pentium Gold 8505, 12th Generation
• CPU: 5 cores, 6 threads, up to 4.40GHz
• RAM: 8GB DDR5
• System Storage: 128GB SSD
• Drive Compatibility: 3.5-inch HDD / 2.5-inch drives
• M.2 Slots: 2 × M.2 NVMe SSD
• RAID: JBOD, Basic, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

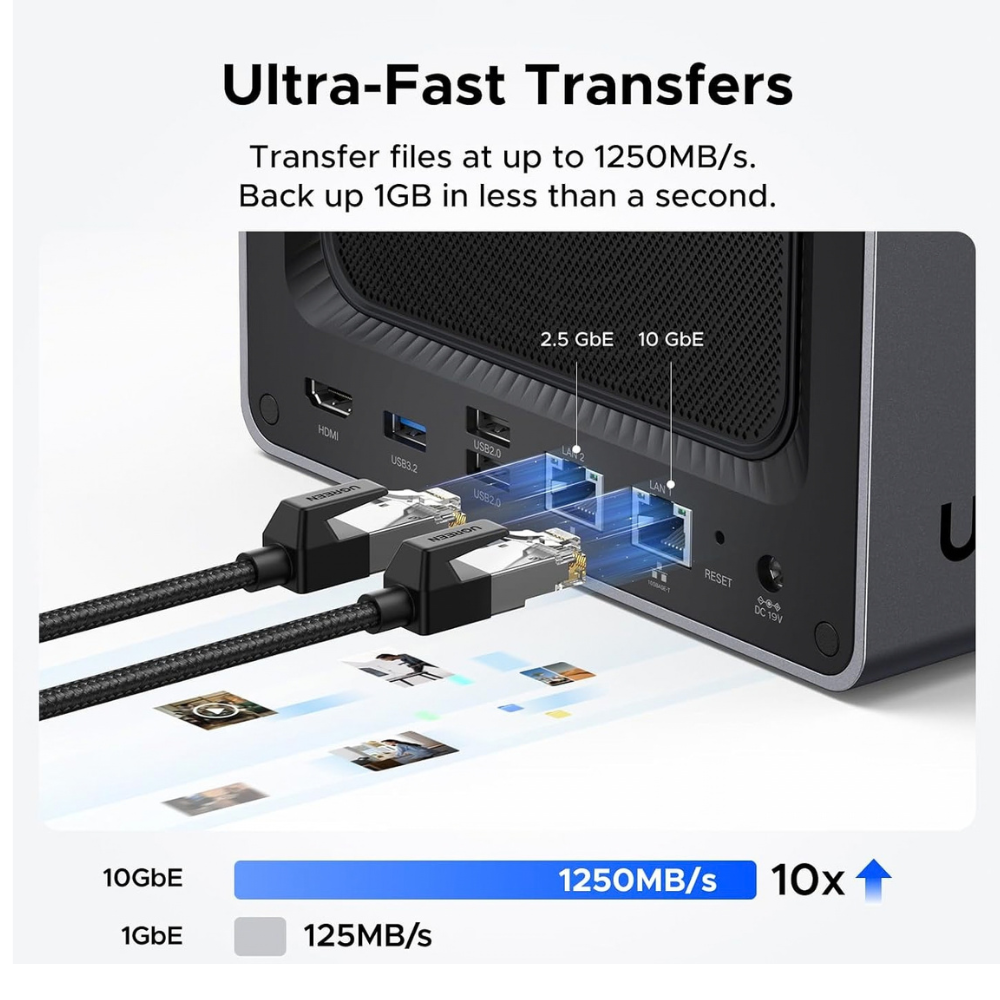

• Network: 1 × 10GbE + 1 × 2.5GbE RJ45
• HDMI: 4K

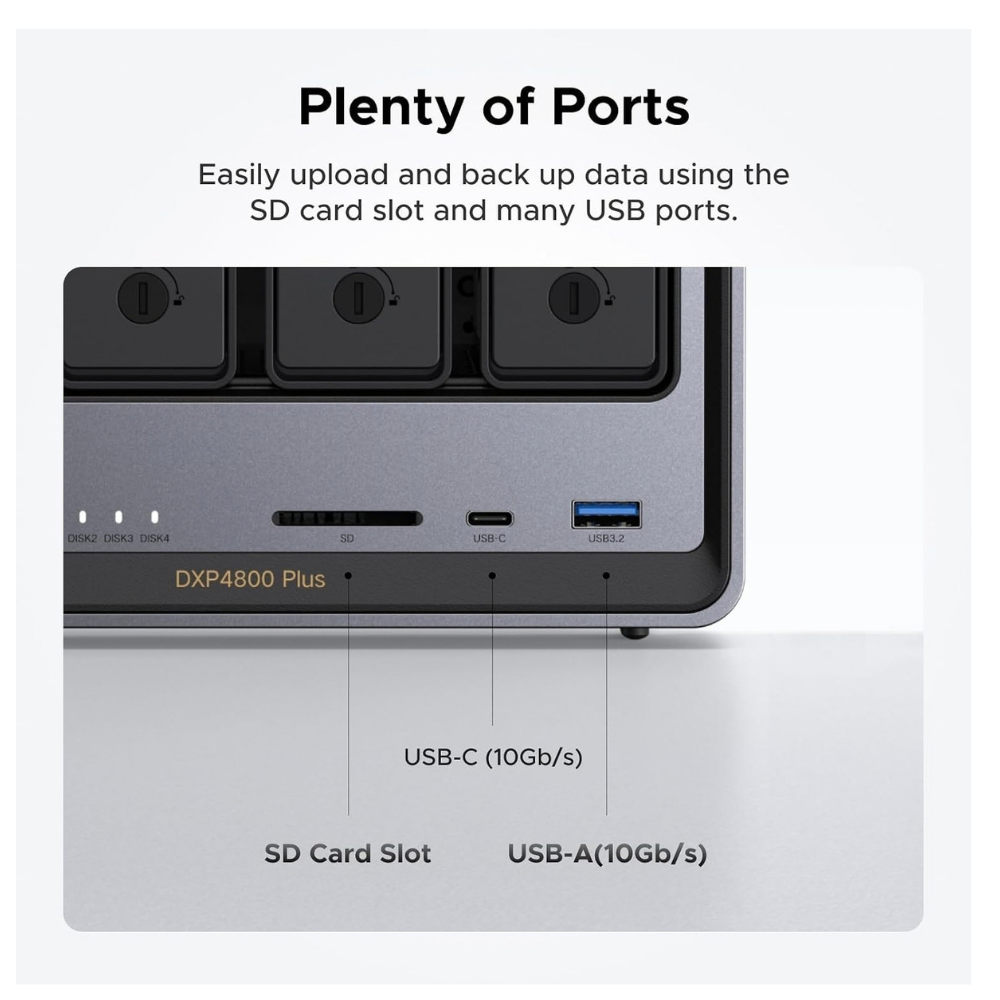

• USB-C: 1 × USB-C, up to 10Gbps
• USB-A: 1 × USB-A up to 10Gbps + 1 × USB-A up to 5Gbps
• USB 2.0: 2 × USB-A
• SD Card Reader: SD 3.0
• Operating System: UGOS Pro
• Wi-Fi: Not built in
• Configuration: Diskless — storage drives sold separately
• Dimensions: 257 × 178 × 178 mm

Ideal Uses of UGREEN NASync DXP4800 Plus

• Business file storage and sharing
• Private cloud storage
• Centralized data backup
• Photo and video libraries
• Media server applications
• Video editing and large-file workflows
• Multi-user office storage
• Surveillance and archival storage
• Virtual machines and Docker applications
• Remote file access and collaboration

Summary

The UGREEN NASync DXP4800 Plus provides a compact but powerful 4-bay storage platform with an Intel Pentium Gold 8505 processor, expandable DDR5 memory, four SATA bays and two NVMe slots. With 10GbE + 2.5GbE networking, 4K HDMI and UGOS Pro, it offers flexible storage and high-speed connectivity for home users, professionals and small businesses.
