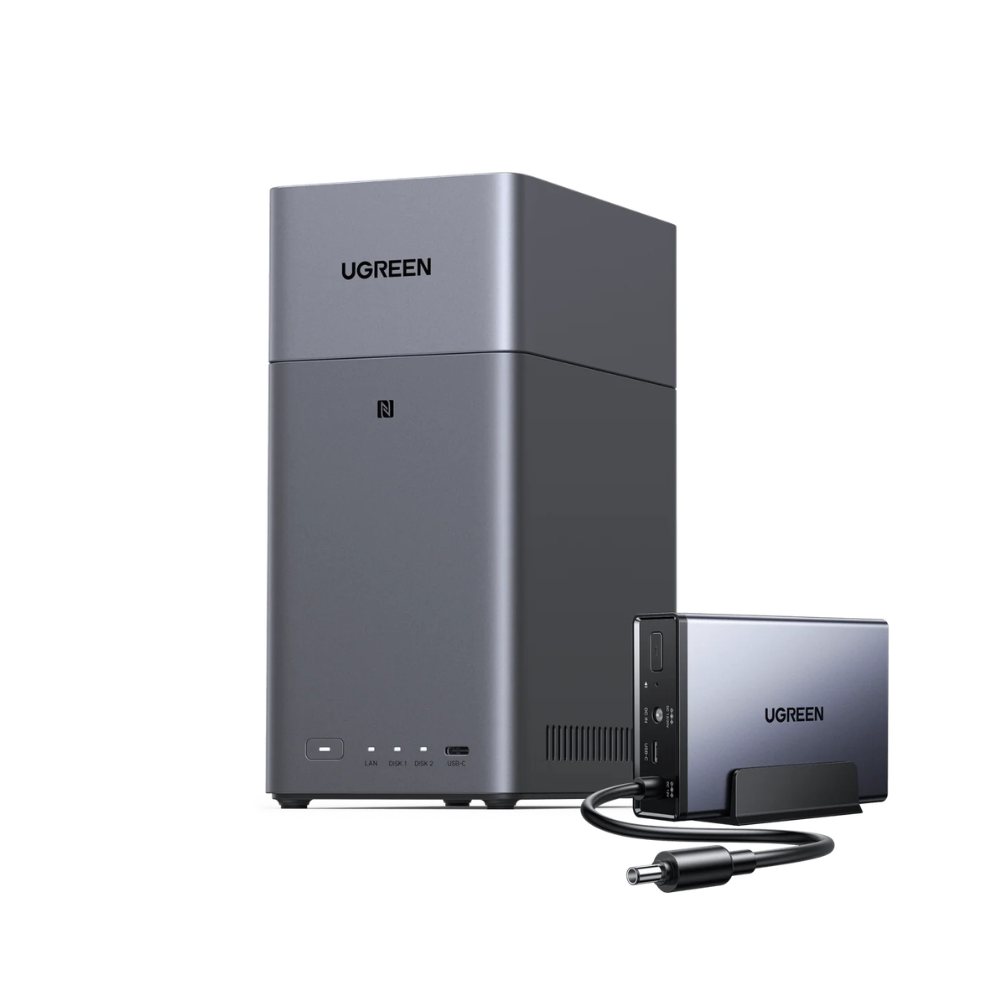

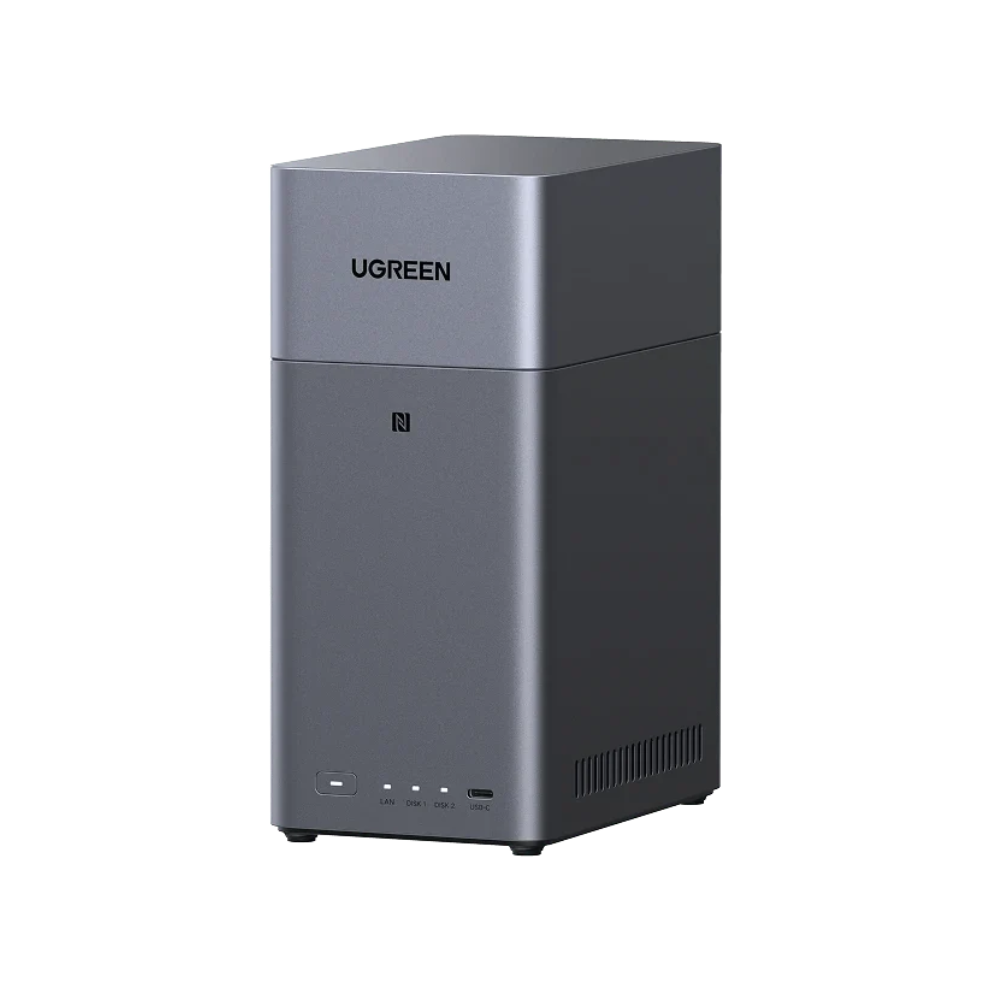

UGREEN NASync DH2300 2-Bay Desktop NAS – 8-Core ARM CPU, 4GB LPDDR4X, 64TB, 1GbE, 4K HDMI, Diskless

Description

The UGREEN NASync DH2300 is a beginner-friendly 2-bay desktop NAS designed for private cloud storage, photo backups, file sharing and home entertainment. It features an efficient 8-core Rockchip ARM processor, 4GB LPDDR4X RAM and 32GB eMMC system storage. Two SATA bays support up to 64TB of storage, while 1GbE networking provides reliable file-transfer speeds. With 4K HDMI output and UGOS Pro, the DH2300 provides an easy way to manage, access and enjoy your personal data across multiple devices.

Key Features of UGREEN NASync DH2300

• 8-core Rockchip ARM processor running at up to 2.2GHz
• 4GB LPDDR4X RAM
• Built-in 32GB eMMC system storage
• 2 × SATA drive bays
• Supports up to 64TB using 2 × 32TB drives

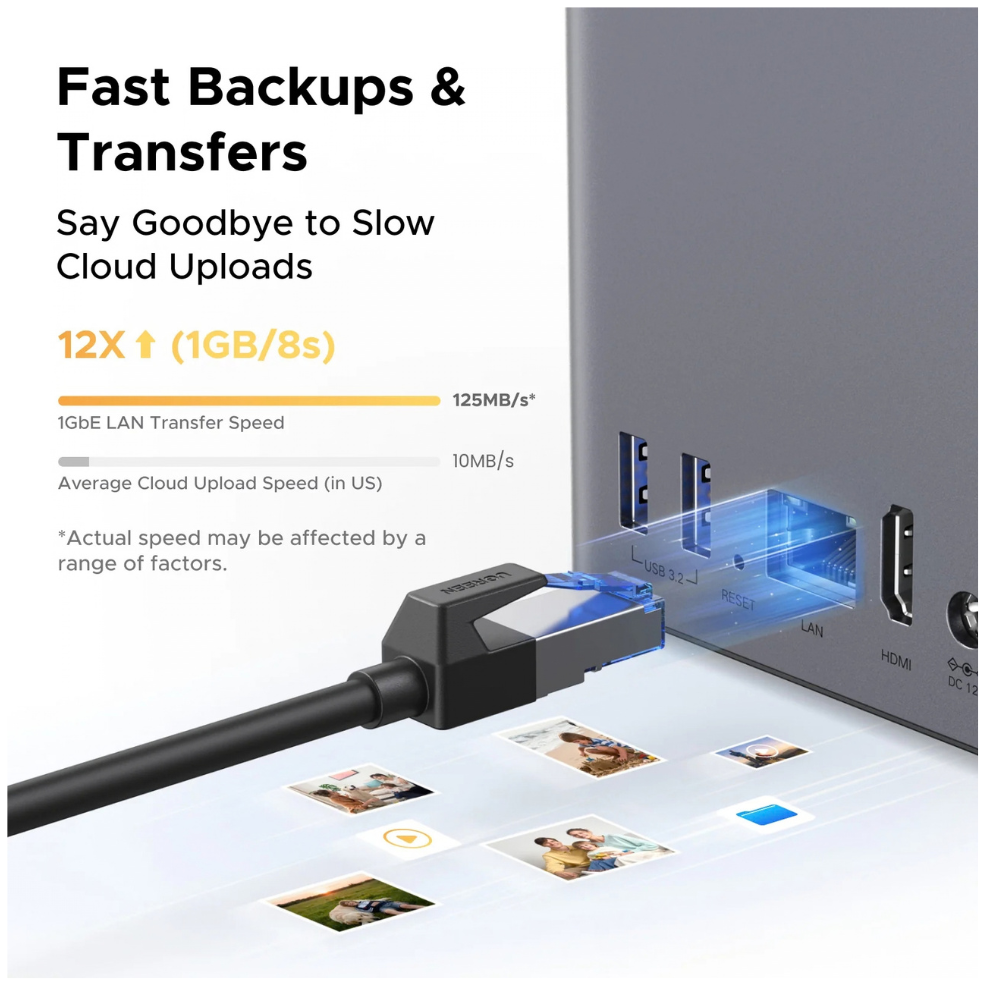

• 1GbE LAN for network connectivity
• 4K 60Hz HDMI output
• UGOS Pro NAS operating system
• AI-powered photo organization and album creation
• Automatic photo and file backups
• Remote access from computers, smartphones and tablets
• NFC one-touch connection for simplified setup on supported configurations
• RAID support including JBOD, Basic, RAID 0 and RAID 1
• Diskless configuration — HDDs/SSDs are not included

Specifications

• Brand: UGREEN
• Model: DH2300
• Form Factor: 2-Bay Desktop NAS
• Processor: Rockchip ARM 8-Core, 2.2GHz
• CPU Architecture: A72+A53 / RK3576
• RAM: 4GB LPDDR4X
• System Storage: 32GB eMMC
• Drive Bays: 2 × SATA
• Drive Compatibility: 3.5-inch HDD / 2.5-inch SATA drives
• Maximum Storage: 64TB (2 × 32TB)
• M.2 NVMe Slots: None
• RAID: JBOD, Basic, RAID 0, RAID 1
• Network: 1 × 1GbE RJ45
• HDMI: 4K 60Hz
• USB-C: 1 × USB-C, 5Gbps
• USB-A: 2 × USB-A, 5Gbps
• Operating System: UGOS Pro
• Configuration: Diskless
• Dimensions: 151 × 98 × 213.7 mm

Ideal Uses of UGREEN NASync DH2300

• Personal and family cloud storage
• Smartphone photo backup
• Home media storage
• File sharing
• PC and laptop backups
• 4K home entertainment
• Remote file access
• Family photo management
• Small-office data storage
• Private cloud applications

Summary

The UGREEN NASync DH2300 provides a simple entry point into private cloud storage. Its two SATA bays, 64TB maximum capacity, 4GB LPDDR4X memory, 1GbE networking, 4K HDMI and AI-powered photo management make it well suited to home users and NAS beginners. The diskless design allows you to select the storage drives according to your required capacity.
