Description

UGREEN CM752 DXP6800 Pro 6-Bay Desktop NAS – Intel Core i5-1235U, 8GB DDR5, 128GB SSD, Dual 10GbE, 2× NVMe, 8K HDMI

Description

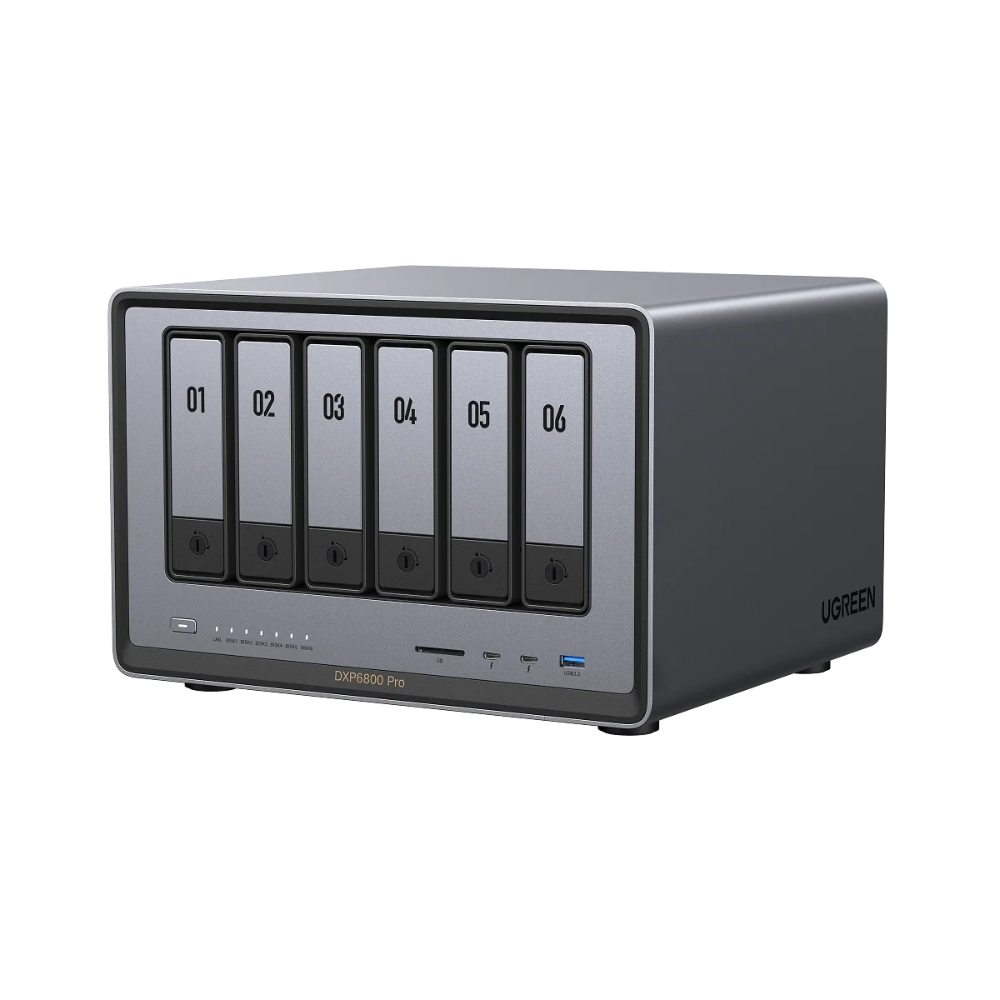

The UGREEN CM752 DXP6800 Pro is a high-performance 6-bay desktop NAS designed for centralized storage, backups, media management and professional workloads. It features a 12th Gen Intel Core i5-1235U processor with 10 cores and 12 threads, 8GB DDR5 memory expandable up to 64GB, and a dedicated 128GB SSD for the operating system. Six SATA bays and two M.2 NVMe slots provide flexible storage expansion, while dual 10GbE networking delivers high-speed data transfers.

Key Features of UGREEN CM752 DXP6800 Pro

• 12th Gen Intel Core i5-1235U processor
• 10 cores / 12 threads, up to 4.4GHz
• 8GB DDR5 4800MHz RAM, expandable up to 64GB
• Built-in 128GB SSD for the system
• 6 × SATA drive bays supporting 3.5-inch HDDs and 2.5-inch drives
• 2 × M.2 NVMe SSD slots
• Up to 160TB maximum storage based on UGREEN’s supported configuration

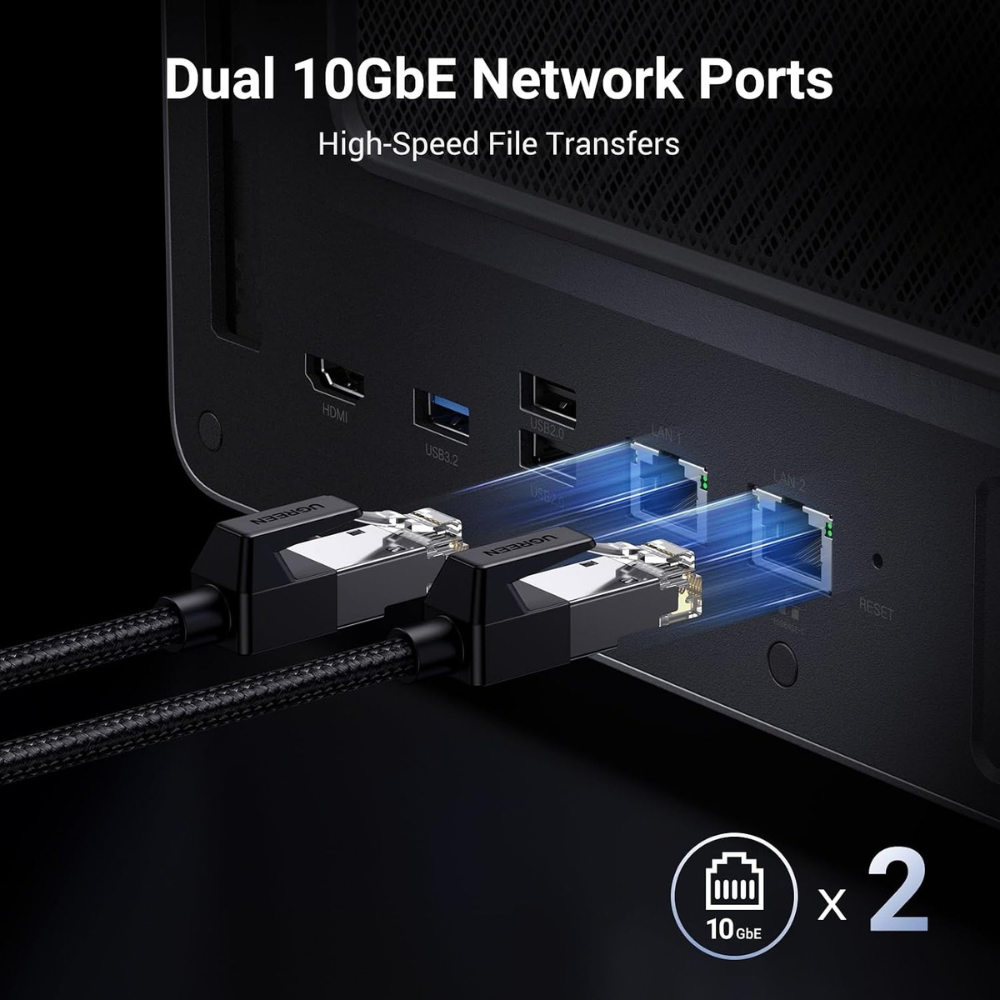

• 2 × 10GbE LAN ports with link aggregation support
• 2 × Thunderbolt 4 ports with up to 40Gbps bandwidth
• 8K HDMI output
• UGOS Pro NAS operating system
• Supports JBOD, Basic, RAID 0, 1, 5, 6 and 10
• PCIe Gen4 x4 expansion slot
• SD 4.0 card reader
• Designed for high-speed file sharing, backups, media and professional workflows

Specifications

• Brand: UGREEN
• Model: CM752 DXP6800 Pro
• Form Factor: 6-Bay Desktop NAS
• Processor: Intel Core i5-1235U, 12th Gen
• CPU: 10 cores, 12 threads, up to 4.4GHz
• RAM: 8GB DDR5 4800MHz
• System Storage: 128GB SSD
• Drive Compatibility: 3.5-inch HDD / 2.5-inch drives
• M.2 Slots: 2 × M.2 NVMe SSD
• Maximum Storage: Up to 160TB
• RAID: JBOD, Basic, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Network: 2 × 10GbE RJ45
• Thunderbolt: 2 × Thunderbolt 4
• PCIe: 1 × PCIe Gen4 x4
• HDMI: 8K output
• USB: USB-A ports, including 10Gbps and USB 2.0 connectivity
• Card Reader: SD 4.0
• Operating System: UGOS Pro
• Wi-Fi: Not built in
• Configuration: Diskless

Ideal Uses of UGREEN CM752 DXP6800 Pro

• Business file storage and sharing
• Centralized data backup
• Private cloud storage
• Photo and video libraries
• Media servers
• Video editing workflows
• Professional content creation
• Virtualization and application hosting
• Team collaboration
• Large-scale home storage

Summary

The UGREEN CM752 DXP6800 Pro combines a 10-core Intel Core i5 processor, expandable DDR5 memory, six SATA bays and two NVMe slots with high-speed dual 10GbE networking. Its 160TB-class storage capability, RAID support, Thunderbolt 4 and 8K HDMI make it suitable for demanding home, business and professional storage environments.
