Description

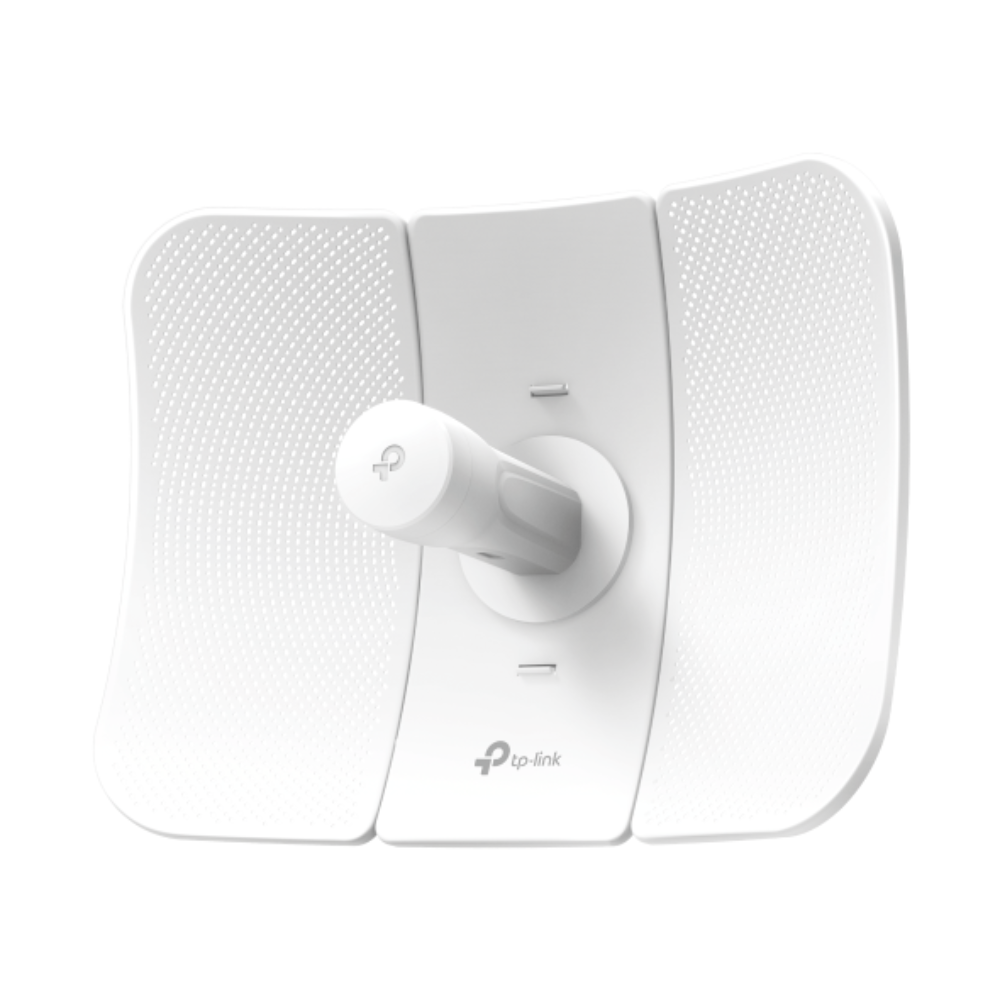

TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE

Description

The TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE is a professional-grade outdoor wireless device designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) network deployments. Featuring 300Mbps wireless speeds, a 23dBi high-gain directional antenna, 2×2 MIMO technology, and an IP65 weatherproof enclosure, it provides stable, long-distance wireless connectivity of up to 30km under ideal line-of-sight conditions. With Pharos MAXtream TDMA, Pharos Control, and Passive PoE, it is ideal for ISPs, businesses, farms, campuses, and CCTV backhaul networks.

Features of TP-Link CPE610 5GHz

• Up to 300Mbps wireless speed on the 5GHz band
• 23dBi high-gain directional 2×2 MIMO antenna
• Long-range wireless transmission up to 30km (line-of-sight)
• TP-Link Pharos MAXtream TDMA technology
• Pharos Control centralized management software
• IP65 weatherproof enclosure
• 15kV ESD and 6kV lightning protection
• Qualcomm 560MHz processor for reliable performance
• Supports 24V Passive PoE for flexible deployment
• Adjustable transmit power

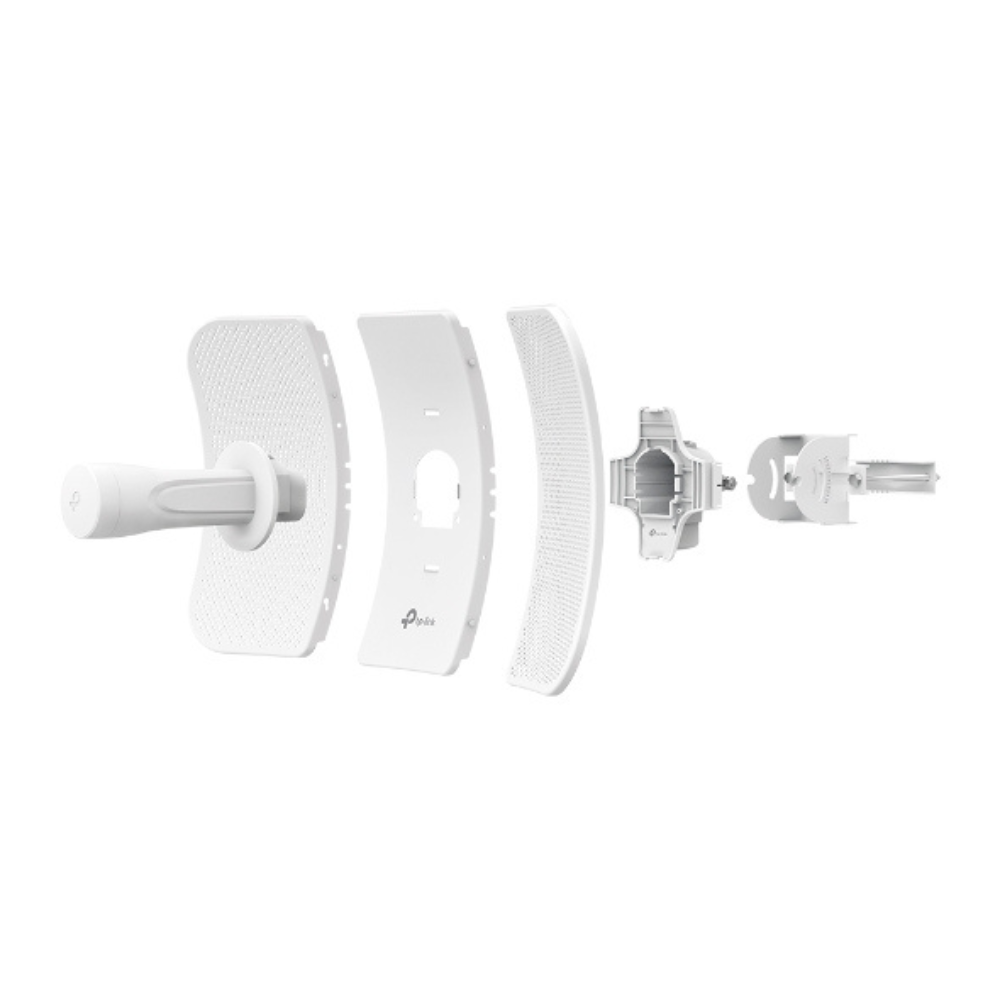

• Pole-mount design with wind-resistant construction

Specifications

• Model: TP-Link CPE610
• Device Type: Outdoor Wireless CPE
• Wireless Standard: IEEE 802.11a/n
• Wireless Speed: Up to 300Mbps
• Frequency: 5GHz (5.15–5.85GHz)
• Antenna: 23dBi Directional 2×2 MIMO
• Ethernet Port: 1 × 10/100Mbps Shielded RJ45 Port
• Processor: Qualcomm 560MHz CPU
• Memory: 64MB DDR2 RAM
• Flash Storage: 8MB
• Power: 24V Passive PoE
• Weather Rating: IP65
• Protection: 15kV ESD, 6kV Lightning Protection
• Management: PharOS Web Interface, Pharos Control
• Mounting: Pole Mount

Uses of TP-Link CPE610 5GHz

• Long-distance point-to-point wireless bridges
• Point-to-multipoint wireless deployments
• Campus and school networking
• Farm and agricultural connectivity
• Warehouse and factory networking
• CCTV surveillance backhaul
• ISP and WISP broadband distribution
• Connecting remote buildings without laying cables

Summary

The TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE is a reliable and cost-effective solution for long-distance outdoor wireless networking. Equipped with a 23dBi directional antenna, 300Mbps wireless performance, Pharos MAX tream TDMA, IP65 weatherproof protection, and 24V Passive PoE, it delivers stable, secure, and efficient connectivity for enterprise, ISP, and industrial applications. It supports wireless links of up to 30km in ideal deployment scenarios.
