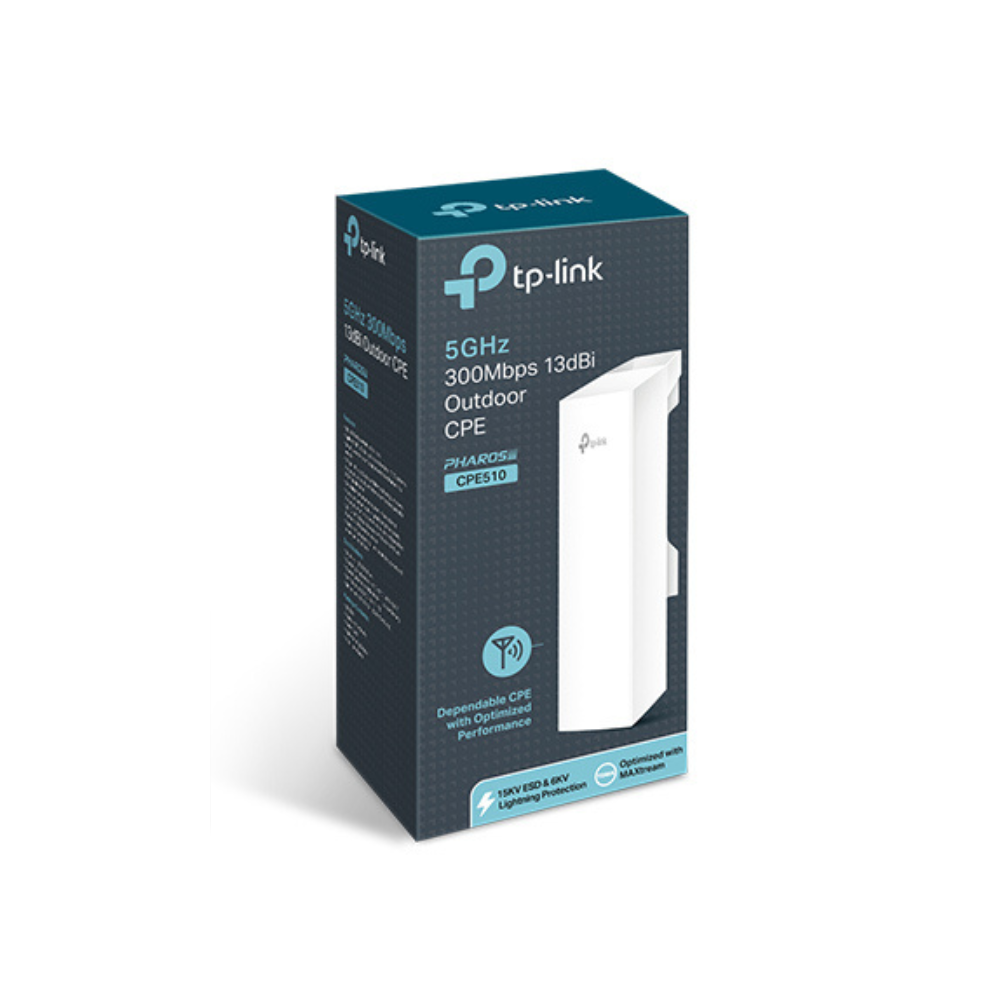

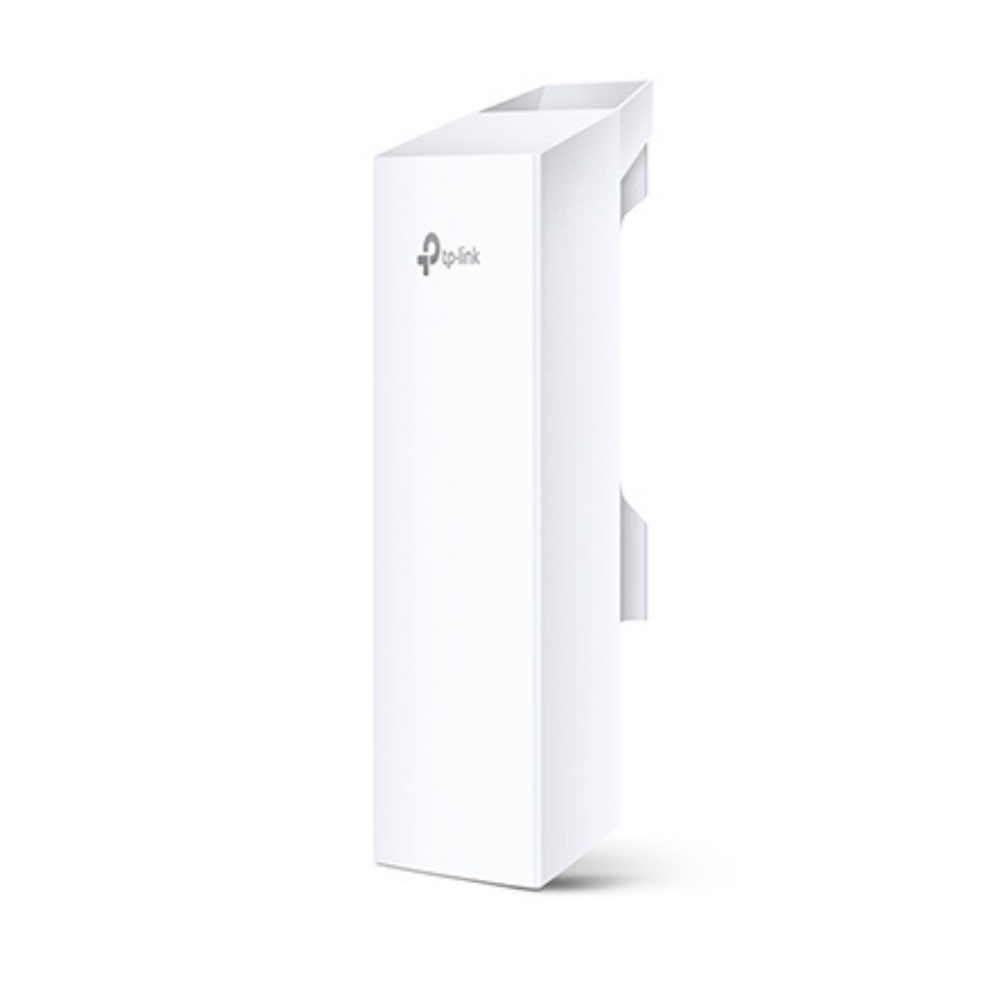

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

Description

The TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE is a professional outdoor wireless networking device designed for point-to-point (PtP) and point-to-multipoint (PtMP) deployments. Featuring 300Mbps wireless speeds, a 13dBi high-gain directional antenna, 2×2 MIMO technology, and Pharos MAXtream TDMA, it delivers reliable long-distance wireless connectivity of up to 15km under ideal line-of-sight conditions. Its IPX5 weatherproof enclosure and 24V Passive PoE support make it ideal for outdoor business, campus, and ISP applications.

Features of TP-Link CPE510 5GHz

• Up to 300Mbps wireless speed on the 5GHz band
• Built-in 13dBi dual-polarized directional antenna
• Long-range wireless transmission up to 15km
• 2×2 MIMO technology for stable wireless performance
• Pharos MAXtream TDMA for improved throughput and reduced latency
• Pharos Control centralized management software
• Adjustable transmission power
• IPX5 weatherproof enclosure
• 15kV ESD and 6kV lightning protection
• Supports 24V Passive PoE for flexible installation
• Multiple operating modes including AP, Client, Bridge, Repeater and WISP

Specifications

• Model: TP-Link CPE510
• Device Type: Outdoor Wireless CPE
• Wireless Standard: IEEE 802.11a/n
• Wireless Speed: Up to 300Mbps
• Frequency: 5GHz (5.15–5.85GHz)
• Antenna: Built-in 13dBi Directional 2×2 MIMO

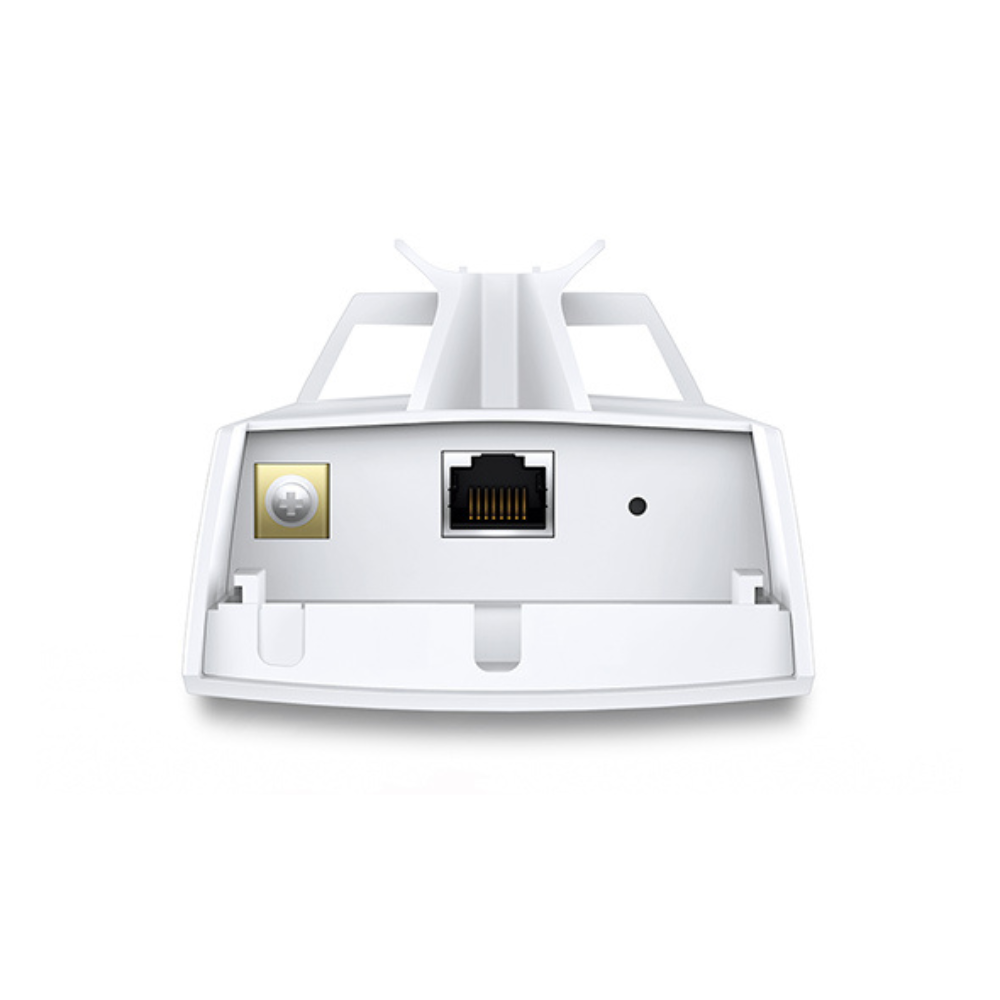

• Ethernet Port: 1 × 10/100Mbps Shielded RJ45 Port
• Processor: Qualcomm Atheros Enterprise 560MHz CPU
• Memory: 64MB DDR2 RAM
• Flash Storage: 8MB
• Power: 24V Passive PoE
• Weather Rating: IPX5
• Protection: 15kV ESD, 6kV Lightning Protection
• Management: PharOS Web Interface, Pharos Control
• Mounting: Pole Mount

Uses of TP-Link CPE510 5GHz

• Point-to-point wireless bridges
• Point-to-multipoint network deployments
• Campus and school networking
• Farm and agricultural connectivity
• Warehouse and factory networking
• CCTV surveillance backhaul
• ISP and WISP broadband distribution
• Connecting remote buildings without installing cables

Summary

The TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE is a dependable and cost-effective solution for long-range outdoor wireless networking. Equipped with a 13dBi directional antenna, 300Mbps wireless performance, Pharos MAXtream TDMA, 24V Passive PoE, and an IPX5 weatherproof design, it delivers stable and secure connectivity for business, industrial, educational, and ISP deployments over distances of up to 15km in ideal conditions.
