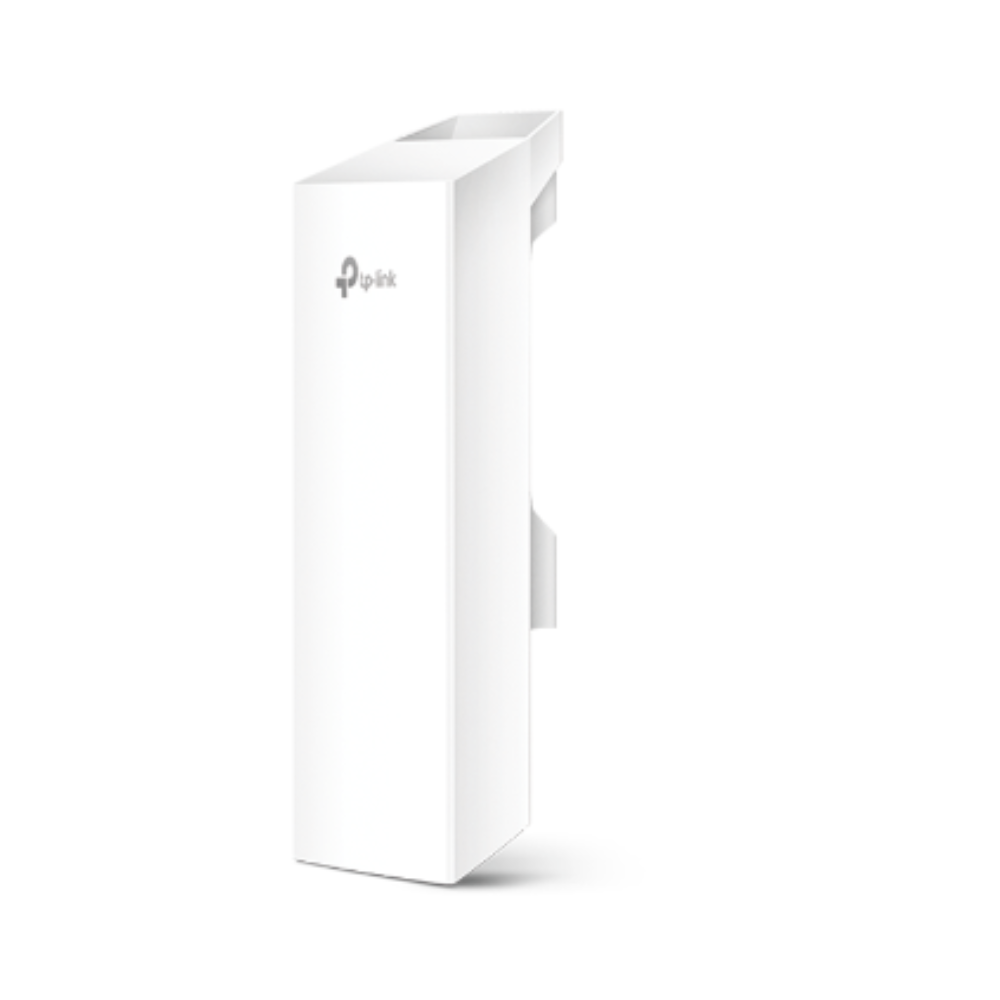

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

Description

The TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE is a professional outdoor wireless networking solution designed for point-to-point (PtP) and point-to-multipoint (PtMP) deployments. Delivering 300Mbps wireless speeds on the 2.4GHz band, it features a 12dBi dual-polarized directional antenna, 2×2 MIMO technology, Pharos MAXtream TDMA, and an IPX5 weatherproof enclosure. With 24V Passive PoE support and centralized Pharos Control management, it is ideal for farms, campuses, warehouses, CCTV backhaul, and rural broadband deployments.

Features of TP-Link CPE220 2.4GHz

• Up to 300Mbps wireless speed on the 2.4GHz band
• Built-in 12dBi dual-polarized directional antenna
• 2×2 MIMO technology for stable long-range connectivity
• Point-to-Point (PtP) and Point-to-Multipoint (PtMP) support
• Pharos MAXtream TDMA technology for improved throughput and reduced interference
• Pharos Control centralized management software
• Supports 24V Passive PoE for flexible installation
• IPX5 weatherproof enclosure for outdoor deployment
• 15kV ESD and 6kV lightning protection
• Multiple operating modes including AP, Client, Bridge, Repeater, and WISP
• Pole-mount design for easy outdoor installation

Specifications

• Model: TP-Link CPE220
• Device Type: Outdoor Wireless CPE
• Wireless Standard: IEEE 802.11b/g/n
• Wireless Speed: Up to 300Mbps
• Frequency: 2.4GHz (2.4–2.483GHz)
• Antenna: Built-in 12dBi Directional Dual-Polarized Antenna
• Technology: 2×2 MIMO
• Ethernet Port: 1 × 10/100Mbps Shielded RJ45 Port
• Power: 24V Passive PoE
• Weather Rating: IPX5
• Protection: 15kV ESD, 6kV Lightning Protection
• Management: PharOS Web Interface, Pharos Control
• Mounting: Pole Mount

Uses of TP-Link CPE220 2.4GHz

• Long-distance point-to-point wireless links
• Point-to-multipoint wireless deployments
• Farm and agricultural networking
• School and campus connectivity
• CCTV surveillance backhaul
• Warehouse and industrial networking
• Rural broadband distribution
• Connecting remote buildings without laying network cables

Summary

The TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE is a reliable and affordable solution for long-range outdoor wireless networking. Combining 300Mbps Wireless N performance, a 12dBi directional antenna, Pharos MAXtream TDMA, 24V Passive PoE, and an IPX5 weatherproof design, it delivers stable, secure, and efficient connectivity for business, education, agriculture, and ISP applications.
