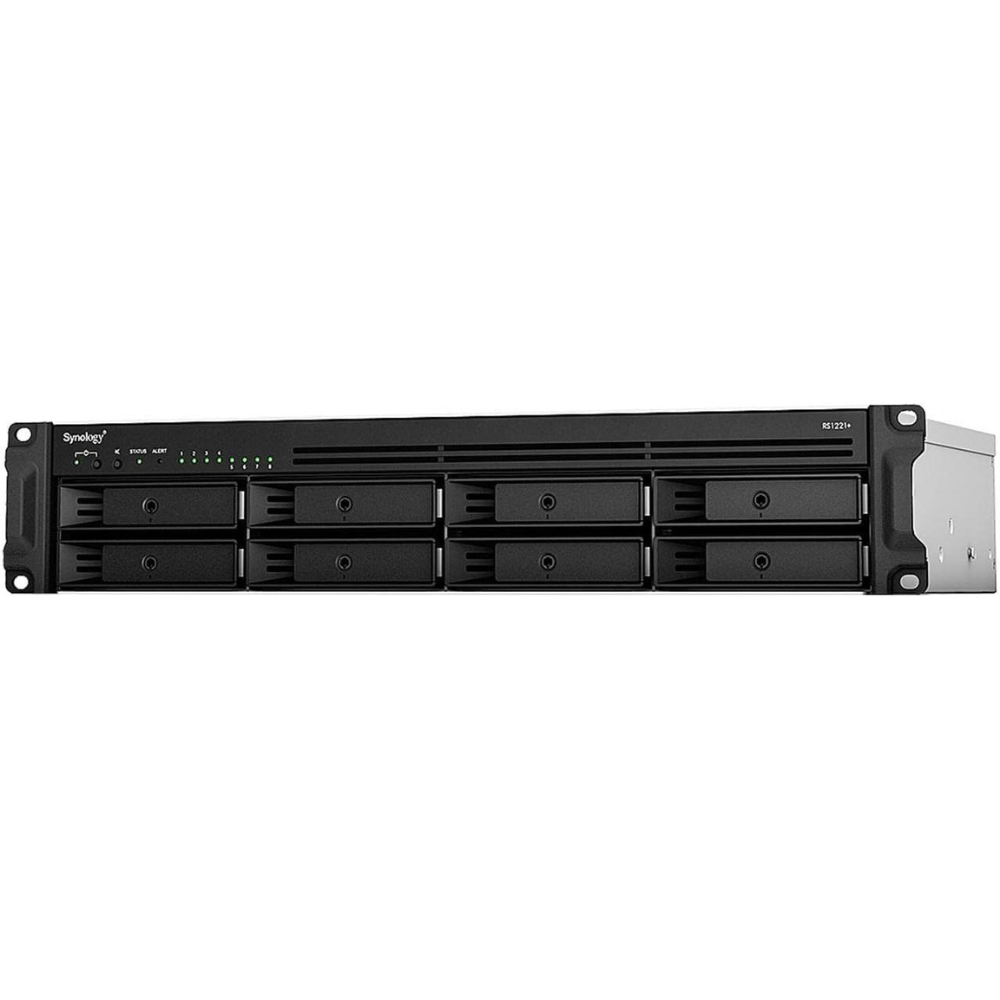

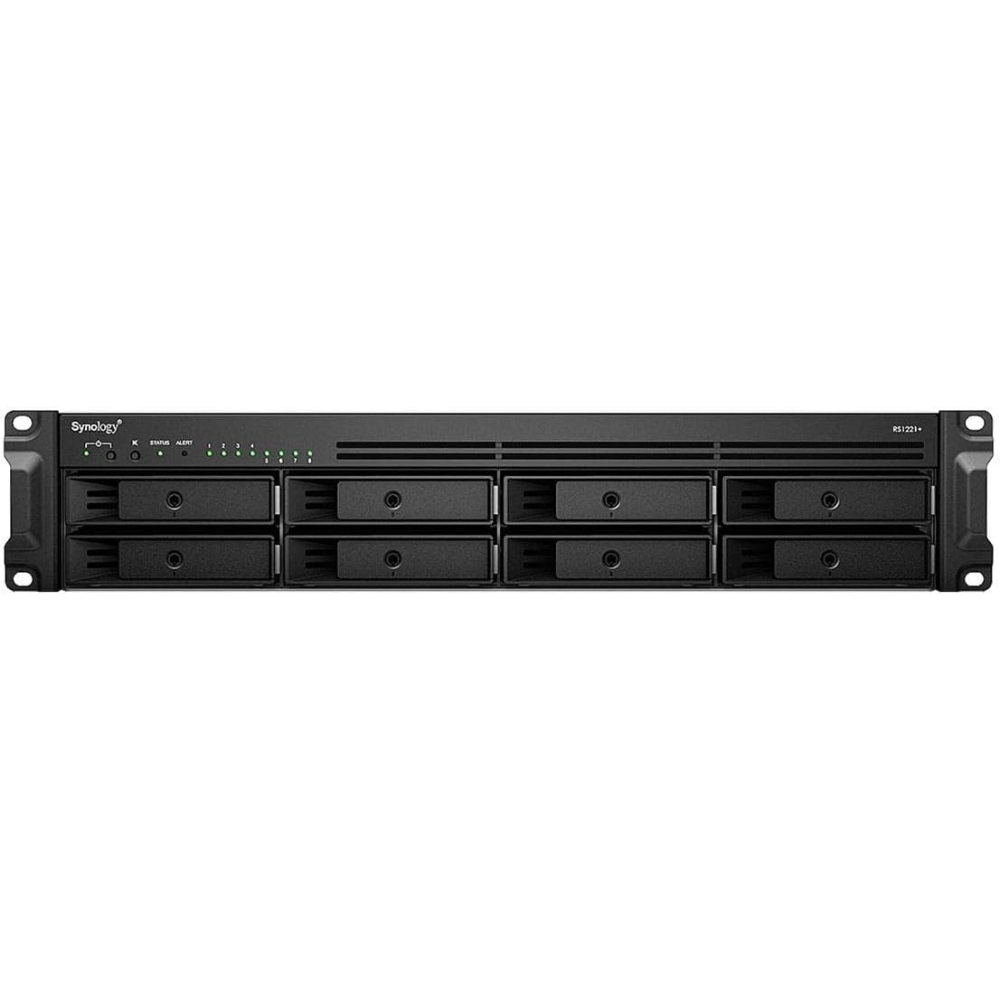

Synology RackStation RS1221+ 8-Bay Rack NAS – AMD Ryzen V1500B, 4GB DDR4 ECC & 4×1GbE

Description

The Synology RackStation RS1221+ is a powerful 8-bay 2U rackmount NAS designed for businesses, offices and professional environments that require centralized storage, backup, file sharing and data protection. It features an AMD Ryzen V1500B quad-core processor, 4GB DDR4 ECC memory and eight SATA drive bays supporting 3.5-inch HDDs and 2.5-inch HDDs or SSDs. Four 1GbE LAN ports provide network connectivity with Link Aggregation and failover support.

Key Features of Synology RackStation RS1221+

• 8-bay 2U rackmount NAS
• AMD Ryzen V1500B quad-core processor
• 4GB DDR4 ECC SODIMM RAM
• Expandable up to 32GB RAM
• 8 × 3.5-inch SATA HDD bays
• Supports 2.5-inch SATA HDDs and SSDs
• Up to 12 drive bays with RX418 expansion unit
• 4 × 1GbE RJ-45 LAN ports
• Link Aggregation and network failover support
• 2 × USB 3.2 Gen 1 ports
• 1 × eSATA expansion port
• PCIe Gen 3 x8 expansion slot with x4 link
• Synology DiskStation Manager (DSM)
• Synology Hybrid RAID (SHR)
• RAID 0, 1, 5, 6 and 10 support
• Btrfs and ext4 file systems
• Hot-swappable drive support
• Hardware encryption engine
• Designed for 19-inch rack installation

Specifications

• Brand: Synology
• Series: RackStation
• Model: RS1221+
• Product Type: 8-Bay Rackmount NAS
• Form Factor: 2U
• Processor: AMD Ryzen V1500B, 4 cores / 8 threads, 2.2GHz
• RAM: 4GB DDR4 ECC SODIMM
• Maximum RAM: 32GB
• Drive Bays: 8 × 3.5-inch SATA HDD / 2.5-inch SATA HDD or SSD
• Maximum Expansion: Up to 12 bays with RX418
• Network: 4 × 1GbE RJ-45
• USB: 2 × USB 3.2 Gen 1
• Expansion: 1 × eSATA
• PCIe: 1 × Gen 3 x8 slot, x4 link
• RAID: SHR, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• File Systems: Btrfs, ext4
• Operating System: Synology DiskStation Manager (DSM)
• Maximum Single Volume: Up to 108TB
• Dimensions: 88 × 482 × 306.6mm
• Weight: 6.9kg
• Power Supply: 250W
• Rack Support: 19-inch 2-post or 4-post rack

Ideal Uses of Synology RackStation RS1221+

• Business and enterprise file storage
• Centralized office data management
• Server and workstation backups
• Private cloud storage
• File sharing and synchronization
• Data archiving
• Multi-user collaboration
• Virtualization applications
• IP camera surveillance
• High-availability business storage environments

Summary

The Synology RackStation RS1221+ provides an efficient 8-bay 2U rackmount NAS platform with AMD Ryzen V1500B processing, 4GB ECC DDR4 memory, four Gigabit Ethernet ports and flexible RAID configurations. Its PCIe expansion slot, eSATA expansion capability and support for up to 12 drives make it suitable for growing business storage and backup requirements.
