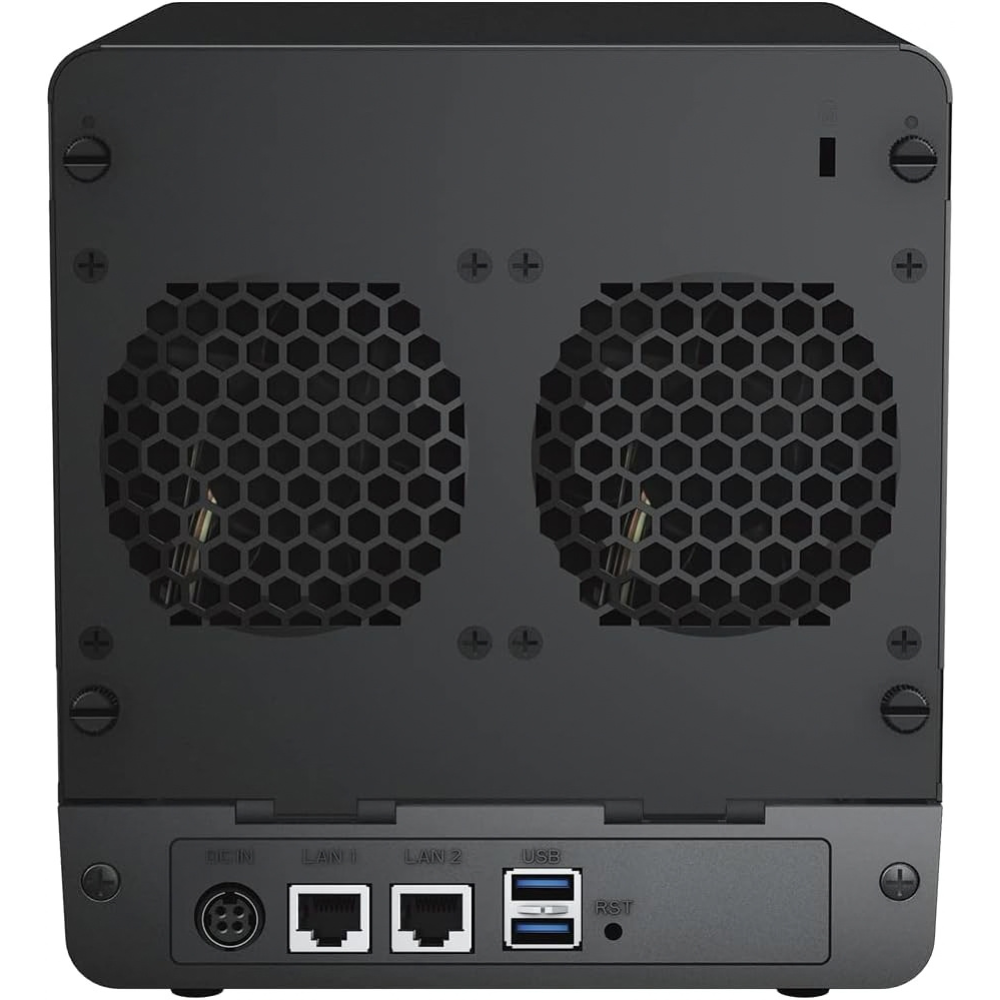

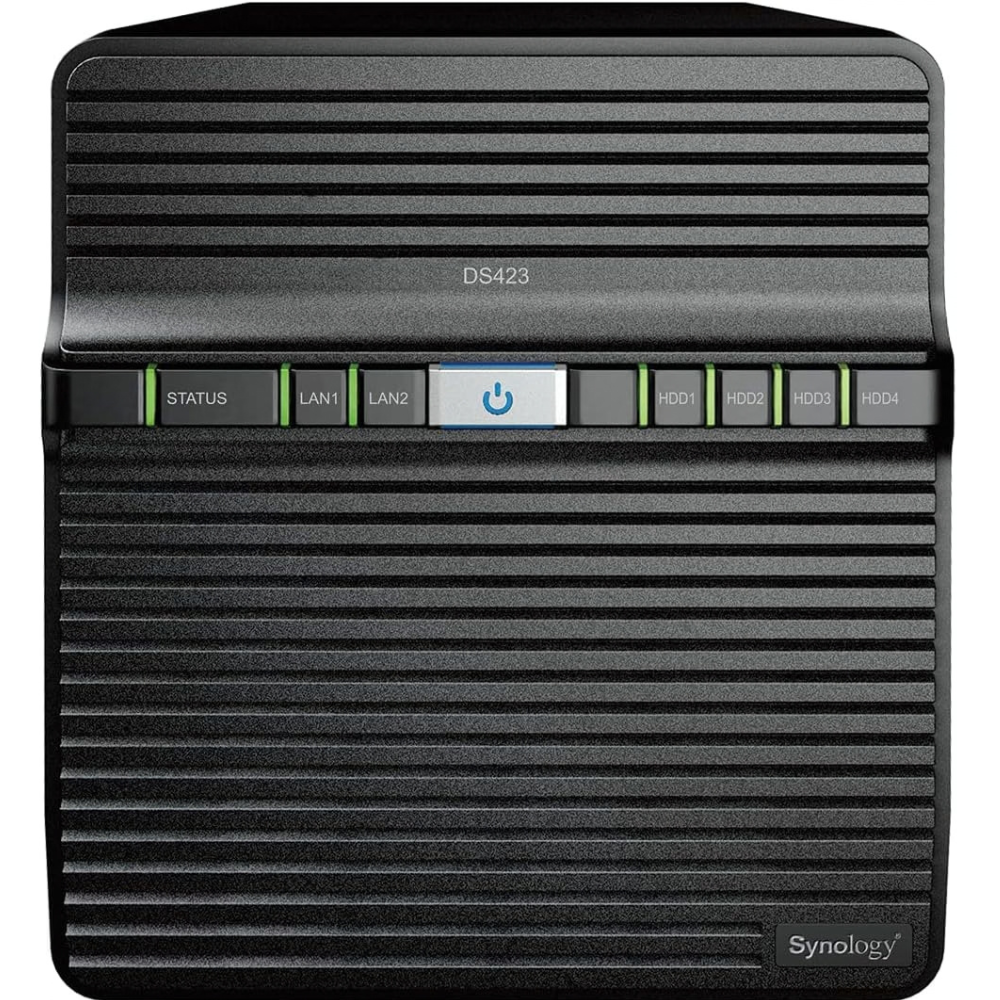

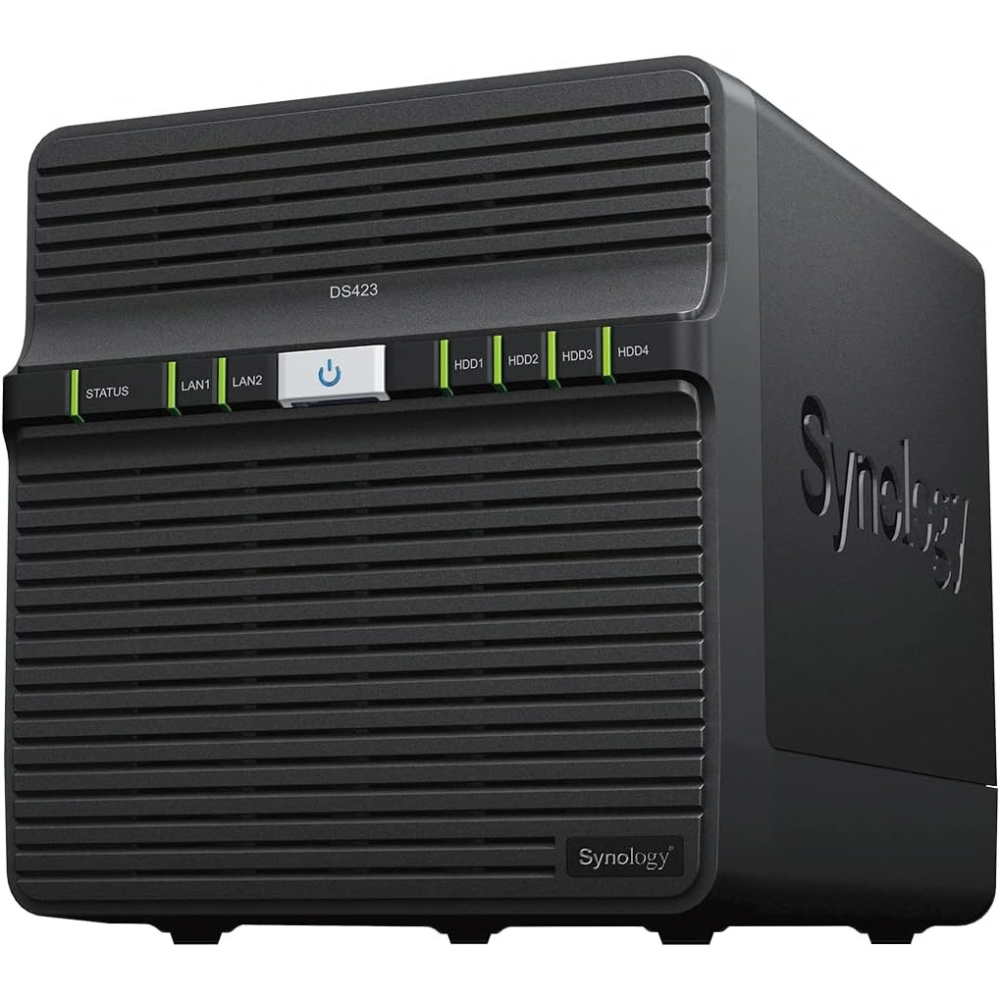

Synology DiskStation DS423 4-Bay NAS Storage – 2GB DDR4, Realtek Quad-Core & Dual 1GbE

Description

The Synology DiskStation DS423 is a versatile 4-bay NAS storage solution designed for home users, small offices and businesses that need centralized file storage, backup, sharing and data protection. It features a Realtek RTD1619B quad-core processor, 2GB DDR4 memory and four SATA drive bays supporting both 3.5-inch HDDs and 2.5-inch SSDs. With two 1GbE LAN ports, DSM software and support for RAID 5, RAID 6 and RAID 10, the DS423 provides flexible storage and data-management options.

Key Features of Synology DiskStation DS423

• 4-bay NAS storage system
• Realtek RTD1619B quad-core 64-bit processor
• 2GB DDR4 non-ECC RAM
• 4 × SATA drive bays
• Supports 3.5-inch SATA HDDs
• Supports 2.5-inch SATA SSDs
• 2 × 1GbE RJ-45 LAN ports
• 2 × USB 3.2 Gen 1 ports
• Synology DiskStation Manager (DSM)
• Synology Hybrid RAID (SHR)
• RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10
• JBOD and Basic storage configurations
• Btrfs and ext4 file systems
• Centralized file storage and sharing
• Backup and synchronization capabilities
• Remote file access
• Surveillance Station support for up to 30 IP cameras

Specifications

• Brand: Synology
• Series: DiskStation
• Model: DS423
• Product Type: 4-Bay NAS
• Processor: Realtek RTD1619B, Quad-Core, 1.7GHz
• RAM: 2GB DDR4 non-ECC
• Drive Bays: 4 × 3.5-inch SATA HDD / 2.5-inch SATA SSD
• Maximum Single Volume: Up to 108TB
• Network: 2 × 1GbE RJ-45
• USB: 2 × USB 3.2 Gen 1
• RAID: SHR, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• File Systems: Btrfs, ext4
• Operating System: Synology DiskStation Manager (DSM)
• Dimensions: 184 × 168 × 230mm
• Weight: 2.21kg
• Power Supply: 90W adapter

Ideal Uses of Synology DiskStation DS423

• Business file storage
• Small-office data management
• Centralized backups
• Personal cloud storage
• File sharing and synchronization
• Photo and video storage
• Remote file access
• Data protection and archiving
• Office collaboration
• IP camera surveillance

Summary

The Synology DS423 provides a flexible 4-bay NAS platform for centralized storage, backup and file management. Its quad-core Realtek processor, 2GB DDR4 memory, four SATA bays, dual Gigabit Ethernet and support for multiple RAID configurations make it suitable for home users, small businesses and professional data-storage environments.
