Mecer 200KVA Smart UPS Tower
KSh 2,200,000.00
Features
| Specification | Details |
|---|---|
| Brand | Mecer |
| Model | ME-200000-WPTU |
| UPS Type | True Online Double-Conversion |
| Capacity | 200KVA / 180KW |
| Input Phase | Three Phase |
| Output Phase | Three Phase |
| Output Waveform | Pure Sine Wave |
Description

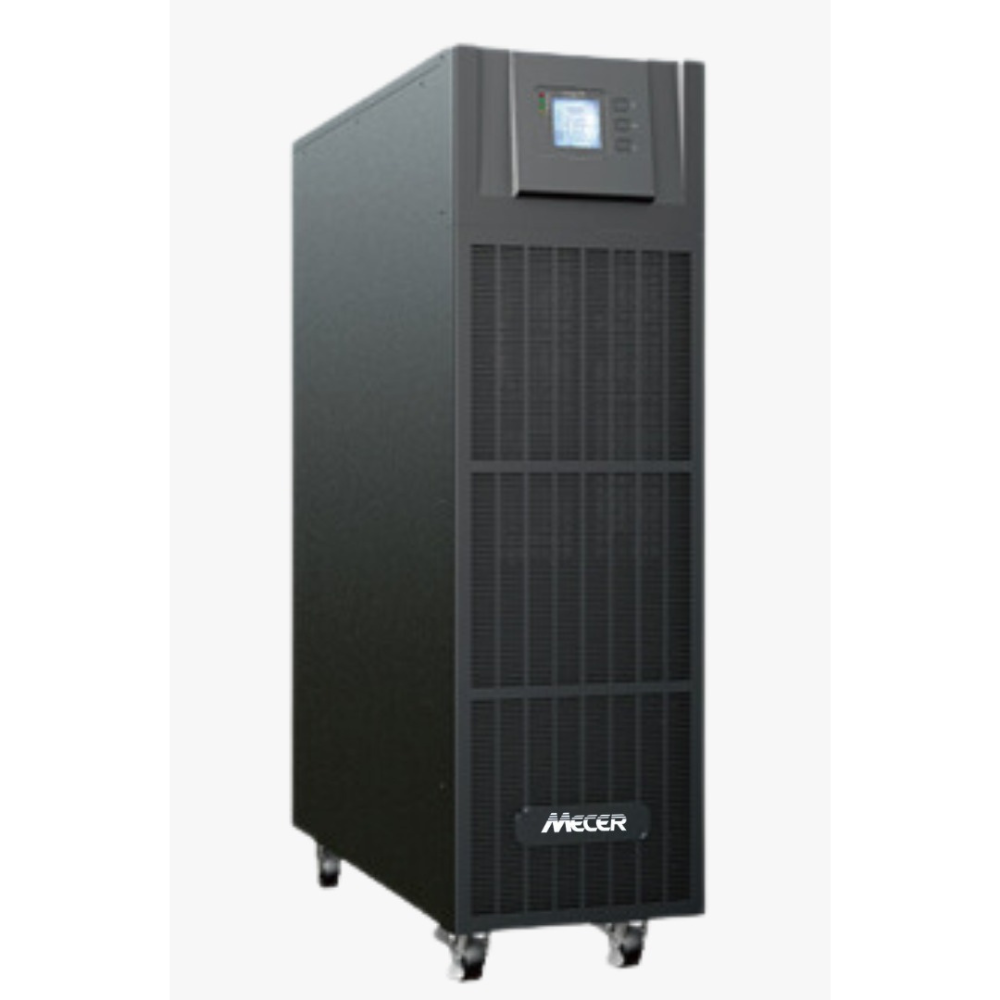

Mecer 200KVA Smart UPS Tower
Description
The Mecer 200KVA Smart UPS Tower (ME-200000-WPTU) is an enterprise-class true online double-conversion UPS designed to provide continuous, clean, and reliable power for large-scale mission-critical environments. With a 200KVA (200,000VA) / 180KW capacity, three-phase input and output, pure sine wave output, and zero transfer time, it delivers superior protection for data centers, industrial facilities, hospitals, financial institutions, and telecommunications infrastructure. Advanced digital control, intelligent battery management, and scalable parallel operation ensure maximum uptime and operational efficiency.
Key Features of Mecer 200KVA Smart UPS
- 200KVA / 180KW power capacity
- True Online Double-Conversion UPS
- Three-phase input and three-phase output (3/3)
- Pure sine wave output
- Zero transfer time
- Up to 96% efficiency (ECO mode)
- 7-inch color touchscreen LCD
- Intelligent battery management
- External battery bank support
- Adjustable charging current up to 60A
- Generator compatible
- Supports parallel operation of up to 6 units
- USB, RS-232, RS-485, and Dry Contact communication
- Intelligent slot for optional SNMP and relay cards
- Overload, surge, short-circuit, and over-temperature protection
Specifications
| Specification | Details |
|---|---|
| Brand | Mecer |
| Model | ME-200000-WPTU |
| UPS Type | True Online Double-Conversion |
| Capacity | 200KVA / 180KW |
| Input Phase | Three Phase |
| Output Phase | Three Phase |
| Output Waveform | Pure Sine Wave |
| Input Voltage | 138–485V AC (load dependent) |
| Output Voltage | 380/400/415V AC |
| Transfer Time | Zero (0ms) |
| Efficiency | Up to 96% |
| Display | 7-inch Color Touch LCD |
| Communication | USB, RS-232, RS-485, Dry Contact, Intelligent Slot |
| Remote Management | Optional SNMP |
| Battery | External Battery Bank |
| Charging Current | Up to 60A (Adjustable) |
| Parallel Operation | Up to 6 Units |
| Form Factor | Tower |
Uses of Mecer 200KVA Smart UPS
- Enterprise data centers
- Cloud computing facilities
- Industrial automation
- Hospitals and medical equipment
- Telecommunications infrastructure
- Banking and financial institutions
- Manufacturing plants
- Large server rooms
- Critical business operations
Summary
The Mecer ME-200000-WPTU Smart UPS Tower is built for organizations where uninterrupted power is essential. Featuring 200KVA/180KW capacity, true online double-conversion technology, three-phase operation, pure sine wave output, and up to 96% efficiency, it delivers reliable protection for mission-critical equipment. With advanced monitoring, scalable parallel capability, and intelligent battery management, it is an ideal power solution for enterprise and industrial applications.
